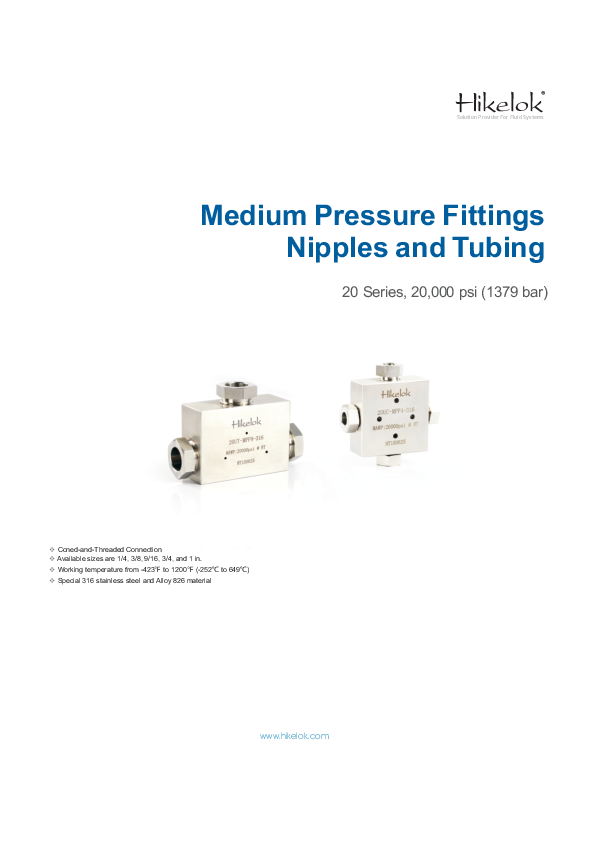

20 Series
Medium Pressure Fittings, Nipple and Tubing Features
Coned-and-Threaded Connection
Available sizes are 1/, 3/8, 9/16, 3/4, and 1 in.
Working temperature from -423℉ to 1200℉ (-252℃ to 649℃)
Special 316 stainless steel and Alloy 826 material
Anti-vibration connection components available
Hikelok 20 series medium pressure fittings are designed for use with 20 series medium pressure valves
High Pressure Ball Valves Features
One-piece, trunnion mounted style, ideal for severe duty applications
2 Way & 3 Way Valve Configuration
PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
316 cold worked stainless steel construction.
Fluorocarbon FKM O-rings for operation from 0°F to 400°F (-17.8°C to 204°C).
Wide selection of tube and pipe end connections available.

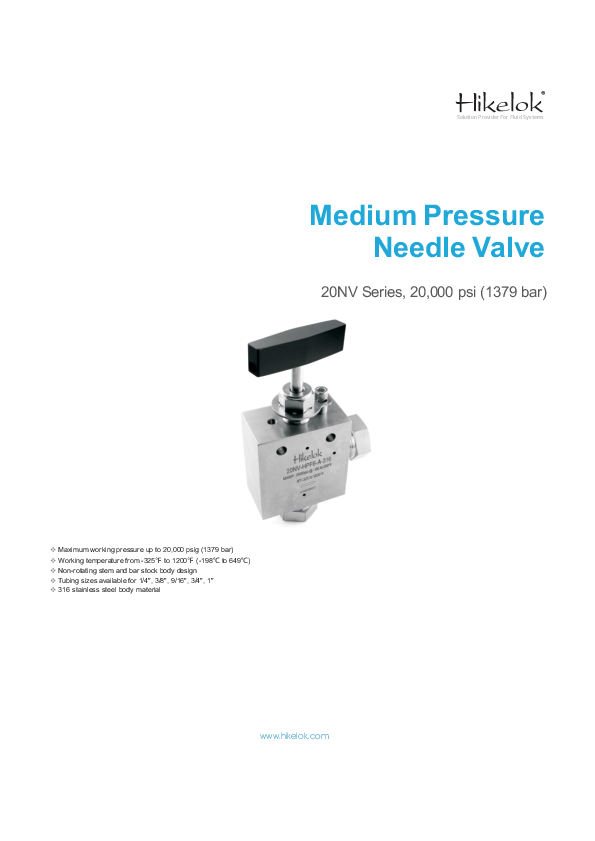

Medium Pressure Needle Valves Features
One-piece, trunnion
Tubing sizes available for 1/4″, 3/8″, 9/16″, 3/4″, 1″
Non-rotating stem and rising stem design
Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat service life in abrasive flow, greater durability for repeated on/off cycles
PTFE is the standard packing material, RPTFE glass, Graphite are available
Graphite packing working Temperatures up to 1200℉ (649℃)
Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque
Cold-worked type 316 stainless steel body and aluminum bronze packing gland
Vee or Regulating stem tips for options
Packing below the thread of valve stem
The locking device of packing gland is reliable
Five body patterns are available
