10 Series
High Pressure Ball Valves Features
One-piece, trunnion mounted style, ideal for severe duty applications
2 Way & 3 Way Valve Configuration
PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion.
316 cold worked stainless steel construction.
Fluorocarbon FKM O-rings for operation from 0°F to 400°F (-17.8°C to 204°C).
Wide selection of tube and pipe end connections available.

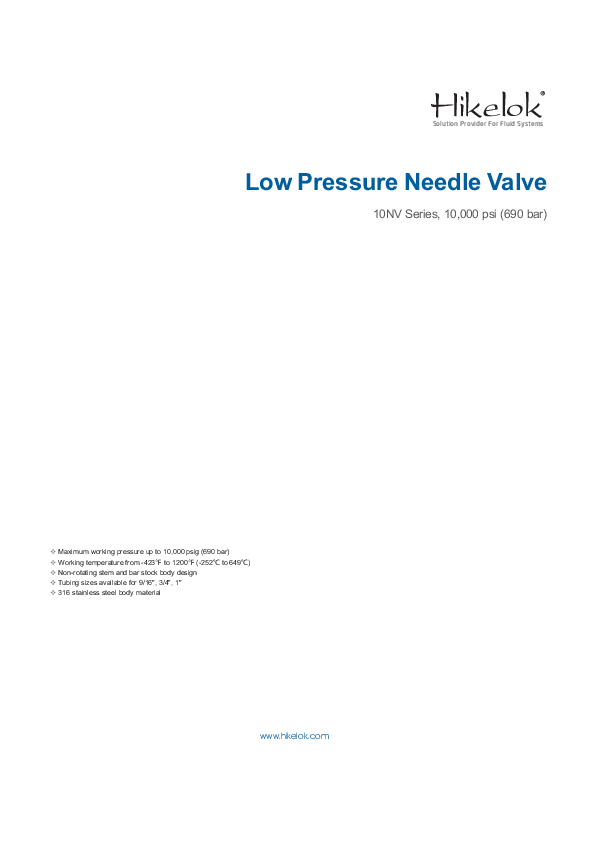

Low Pressure Needle Valves Features
Non-rotating stem and bar stock body design.
Easy to assemble and replace packing.
Metal-to-metal seating achieves ideal shutoff, longer stem/seat service lifetime for abrasive flow, excellent corrosion resistance and greater durability for repeated on/off cycles.
PTFE is the standard packing material, RPTFE glass, Graphite and extended stuffing box with Graphite also available.
The material of packing gland and upper stem have been selected to achieve reduced handle torque and extended thread cycle life.
The material of valve body is 316 SS, the material of lower stem is 17-4PH SS.
Options for Vee or Regulating stem tips.
The location of packing is under the thread of valve stem.
The locking device of packing gland is reliable.
Five flow patterns are available.
